德國NET（New Electronic Technology）是一家集軟硬件設計于一體的高科技公司，主要面向醫療和工業領域提供高級的攝像頭解決方案，除了硬件設計還深入研究一系列實際應用場景的圖像采集和圖像處理算法，經過二十年的發展已經積累了豐富的設計經驗和技術專利。除此之外NET公司還為用戶提供了可視化的軟件開發環境——SynView軟件開發套件，集成了豐富的圖像處理開發資源，如OpenCV、HALCON算法庫、LabView插件等，大大加快了開發人員的開發工作的復雜度，加快了項目進度

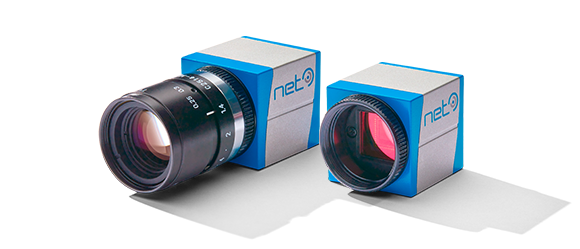

3iCube USB 3.0系列相機提供了廣泛的不同型號，以滿足用戶的個人需求。我們?yōu)榭蛻籼峁┝诉m合每個應用的USB 3.0接口。3iCube相機有與行業標準一致的健壯外殼版本，可以集成到客戶應用程序的董事會級版本，以及根據要求定制的版本。

這些接口提供了同樣多的選擇自由。帶有USB 3.0接口的3iCube帶有一個網絡驅動程序。與USB3視覺界面一起，客戶也得到了網絡開發的GenICam / gentl兼容的軟件界面SynView。3iCube還提供了用戶友好的UVC (USB視頻類)接口。它完全適合于工業使用，運行在標準操作系統Windows和Linux下，并可根據要求運行在Macin osh上。

3iCube可以通過驅動程序、FPGA或NETs SDK / API SynView中的圖像增強功能進行單獨優化。無論您選擇什么:網統一處理的方法幫助您捕獲完美的圖像!

工業相機型號	IC1044BU	IC1044CU	IC1130BU	IC1130CU	IC4133BU	IC4133CU	IC2234BU	IC2234CU
板在相機型號	BC1044BU	BC1044CU	BC1130BU	BC1130CU	BC4133BU	BC4133CU	BC2234BU	BC2234CU
分辨率 (H x V) [px]	752 x 480 / WVGA		1280 x 1024 / SXGA		1280 x 1024 / SXGA		1920 x 1200 / WQUXGA
芯片	CMOS
圖像芯片	MT9V032		MT9M001	MT9M001	EV76C560	EV76C661
芯片尺寸	1/3“		1/3“		1/1.8“		1/1.2“
像素大小[μm]	6.00 x 6.00		5.20 x 5.20	3.60 x 3.60	5.30 x 5.30
幀速[fps]	86		24		60		37
快門方式	global		rolling		global; rolling; global reset		global
快門速度	0.024 -763 ms	0.062 -745 ms	0.02 -394 ms	0.039 -633 ms	0.031 - 1030 ms
動態范圍[dB]	55		68	71	62	63
鏡頭接口	C- / CS-mount
掃描系統	progressiv
觸發	external, software
接口	USB 3.0:iControl SDK USB3 Vision:SynView SDK optional: UVC (USB Video Class Device)
相機尺寸	BC:28 x 28 x 22 / IC: 30 x30 x 31.5 mm
USB連接	lockable micro USB3.0 B-lockable
重量	BC:13g / IC:42g
I/O連接器	8 pin -lockable
功耗(W)	<1.5 (model specific: < 1.0)

工業相機型號	IC4203BU	IC4203CU	IC1300CU	IC1500BU	IC1500CU	IC11000BU	IC11000CU
板在相機型號	BC4203BU	BC4203CU	BC1300CU	BC1500BU	BC1500CU	BC11000BU	BC11000CU
分辨率Z (H x V) [px]	1600 x 1200 / UXGA		2048 x 1536 / QXGA	2592 x 1944 / QSXGA		3840 x 2748 / WQUXGA
芯片	CMOS
圖像芯片	EV76C570		MT9M001	MT9P031	MT9P001	MT9J003
芯片尺寸	1/1.8“		1/2“	1/2.5“		1/2.3“
像素大小[μm]	4.50 x 4.50		3.20 x 3.20	2.20 x 2.20		1.67 x 1.67
幀速[fps]	47		12	14		7.5
快門方式	global; rolling; global reset		rolling	rolling with global reset		rolling with global reset
快門速度	0.031 - 1030 ms		0.056 ms - 50 s	0.085 ms -89 s	0.074 ms -77 s	0.146 ms - 135 s
動態范圍[dB]	62		61	70		65
鏡頭接口	C- / CS-mount
掃描系統	progressiv
觸發	external, software
接口	USB 3.0:iControl SDK USB3 Vision:SynView SDK optional: UVC (USB Video Class Device)
相機尺寸	BC:28 x 28 x 22 / IC: 30 x30 x 31.5 mm
USB連接	lockable micro USB3.0 B-lockable
重量	BC:13g / IC:42g
I/O連接器	8 pin -lockable
功耗（W)	<1.5 (model specific: < 1.0)

USB 3.0 cameras - Powerful and individually optimizable

The 3iCube USB 3.0 camera series offers a wide range of different models to meet the individual needs of users. Customers are provided with an appropriately equipped model featuring the USB 3.0 interface most suitable for each application. 3iCube cameras come in robust housing versions consistent with industry standards, board-level versions that can be integrated in o the customer application and, on request, customized versions.

The interfaces offer just as much freedom of choice. 3iCube with USB 3.0 interface comes with a NET driver. Together with the USB3 vision interface, customers also get the NET-developed GenICam / GenTL-compatible software interface SynView. 3iCube is also available with the user-friendly UVC (USB Video Class) interface. It is fully suitable for industrial use and runs under the standard operating systems Windows and Linux and, on request, Macin osh.

3iCube can be individually optimized by means of the image enhancement feature in the driver, FPGA or NETs SDK / API SynView. Whatever you opt for: NETs unified processing approach helps you capture the perfect image!

Customer-specific configuration

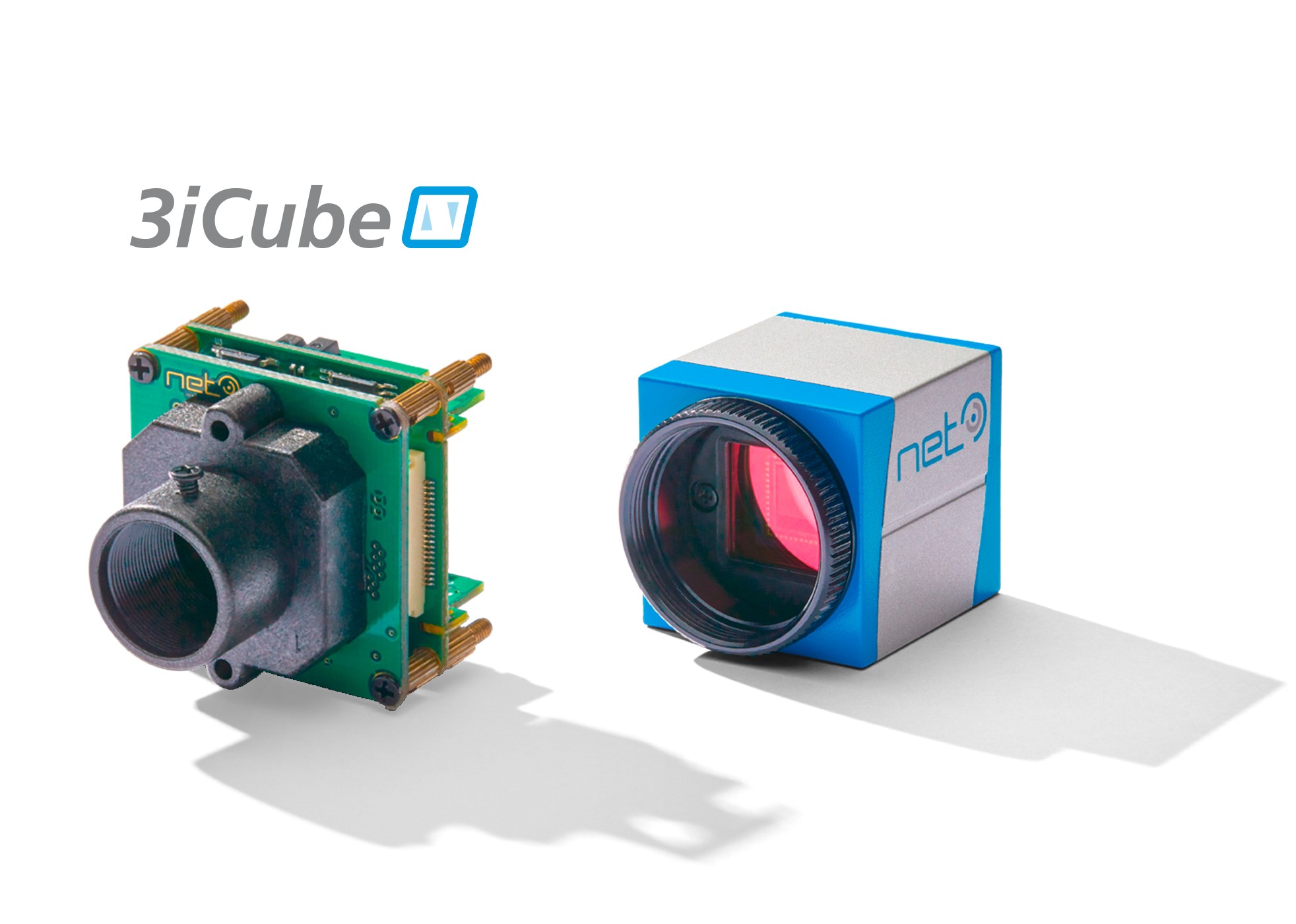

3iCube cameras can be flexibly configured to meet the requirements of the specific customer application. With its industrial-standard aluminum housing, 3iCube is suitable for use in a wide range of possible applications, for example in the factory automation sector. A compact board-level version is available for device integration. Either C or S mount lenses can be fitted. NET also supports its customers with application-specific adaptations. On request, we can also offer pre-focused lenses, customized driver adaptations and other alterations.

Interface diversity

3iCube allows users to choose which USB 3.0 interface they want to use. Choose between our tried-and-tested SDK, which is also used in NETs USB 2.0 cameras, or models without camera-specific drivers. The 3iCube vision models use a generic interface, which enables direct integration in o vision architectures together with GigE vision cameras. 3iCube cameras with a UVC interface are fully functional without a driver. We have added a trigger feature for industrial applications to the UVC protocol.

The perfect image for your application

The wide range of image sensors and features helps you to choose the best possible product. In configuring the vision solution, we offer our customers our expertise in video processing to help capture the perfect image for the application. We can also develop additional algorithms for an extended range of functions according to individual customer requirements.

Legend: R: rolling / G: global / GR: global reset / RGR: rolling mit global reset / GRGR: global; rolling; global reset

德國NET公司3iCube 工業相機

USB 3.0 cameras - Powerful and individually optimizable
