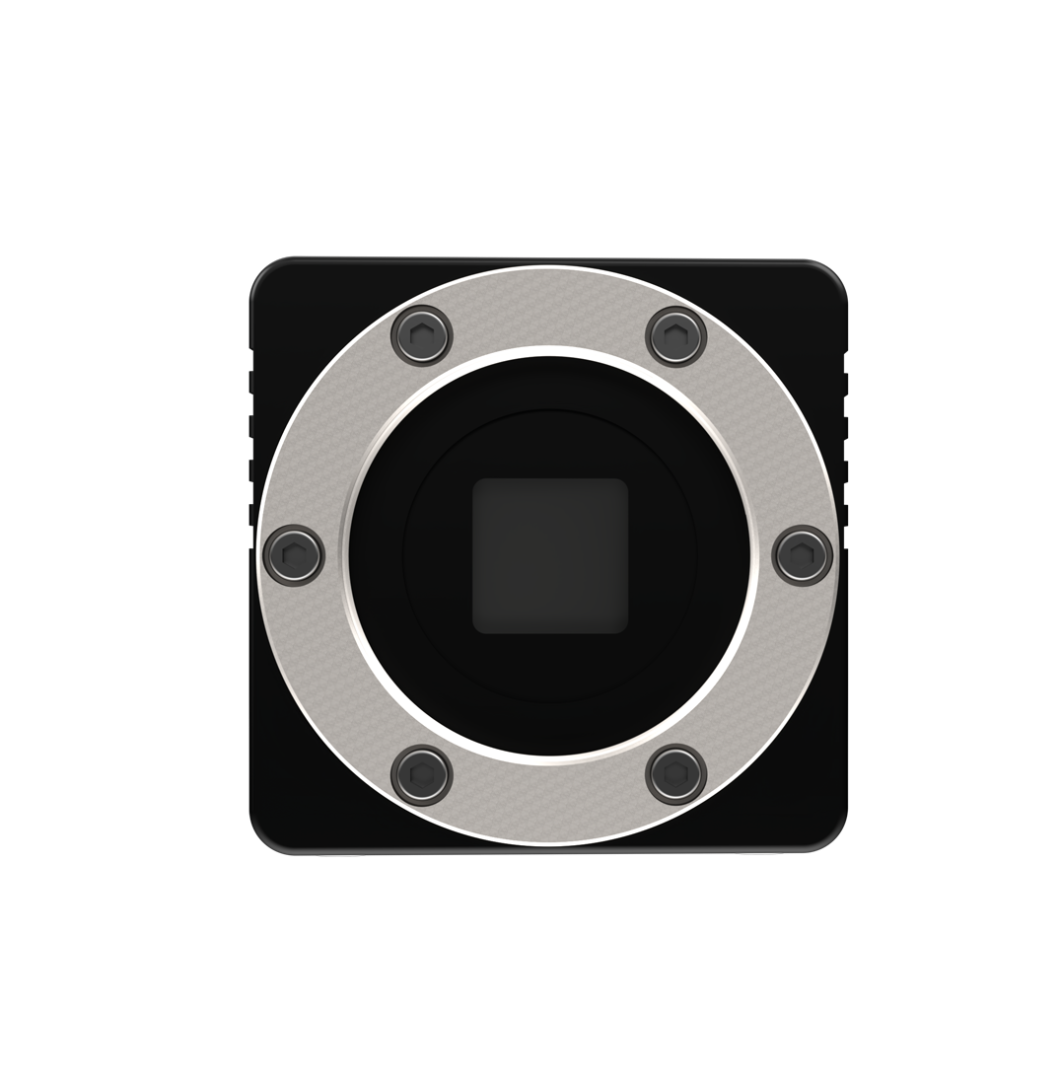

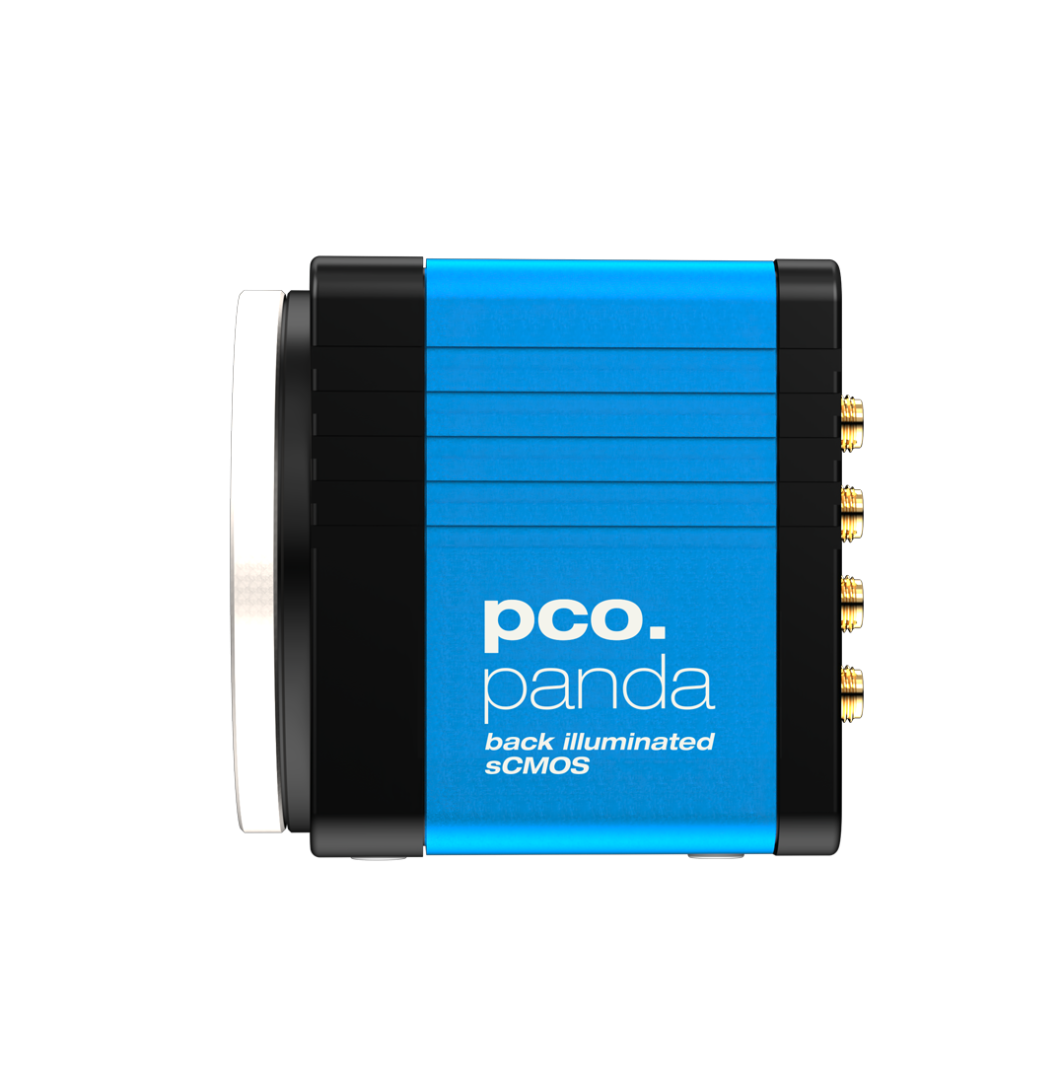

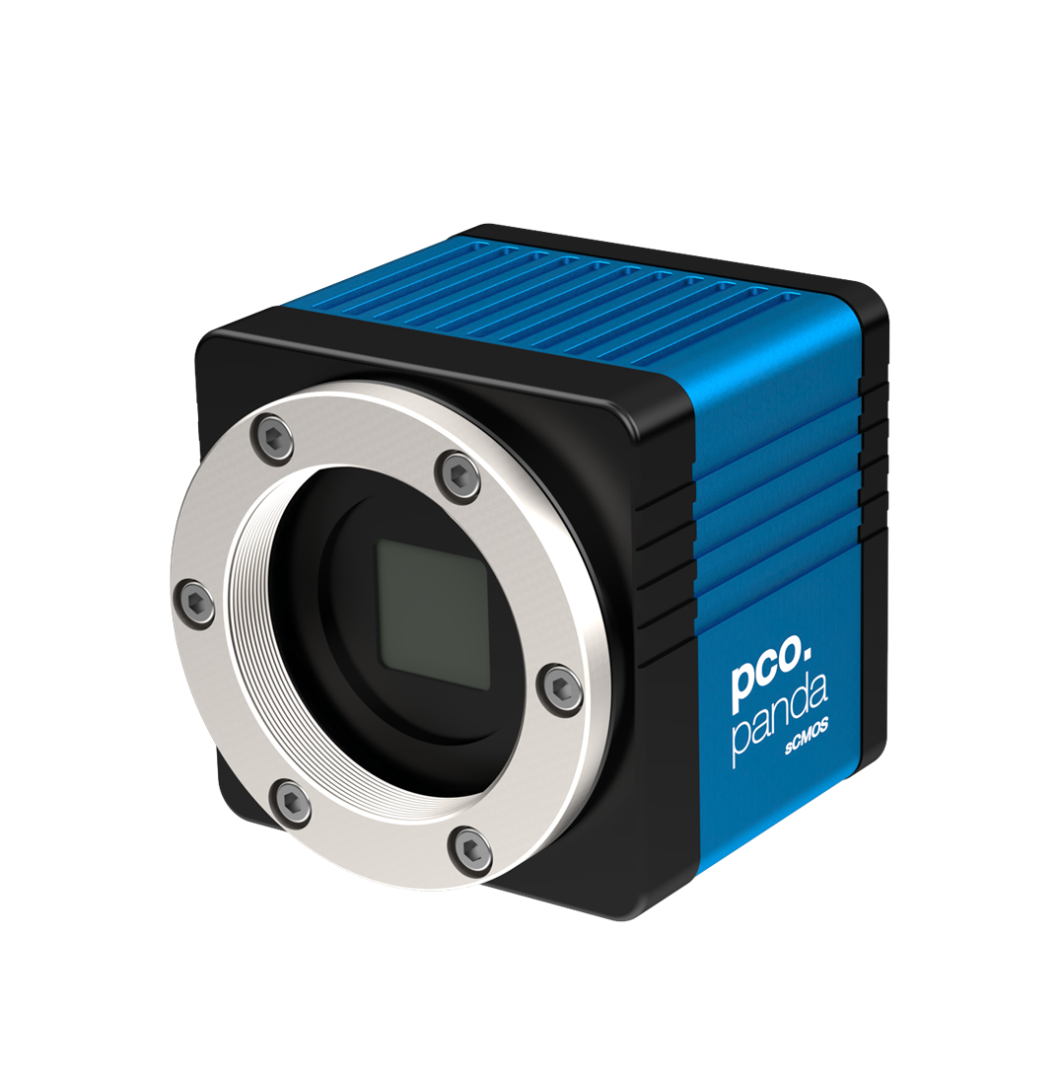

pco.panda  26 DS 雙快門sCMOS 相機---2600萬像素超高分辨率  , 緊湊型sCMOS相機 ,全局快門，1us幀間隔時間

pco.panda 26 DS 雙快門 sCMOS相機,為您提供一個高分辨率，緊湊型的雙快門sCMOS相機, 該相機專為粒子圖像測速(PIV)實驗而設計。

pco.panda 26 DS 相機采用全局快門功能的sCMOS圖像傳感器,  使其成為雙快門相機在流體分析中執行所有類型的粒子圖像測速測量的先決條件。在PIV實驗中，光散射粒子被加入到被測流中。激光束形成一個光片，以短脈沖間隔照亮散射粒子兩次Δt ,這個時間間隔的下限由相機的雙快門幀間時間定義。散射光被記錄在高分辨率數字相機的連續兩幀上。雙快門間隔時間越短，可分析的流速越高。

pco.panda 26 DS 雙快門 sCMOS相機還具備很多出色的設計。 相機2.5 x 2.5 μ m2像元大小，超高的空間分辨率非常適合在光學系統中使用；

使用真電荷域全局快門，可以實現非常低的讀出噪聲和暗電流；像素結構允許可以讓相機獲取雙快門圖像，幀間時間僅為1μs ;

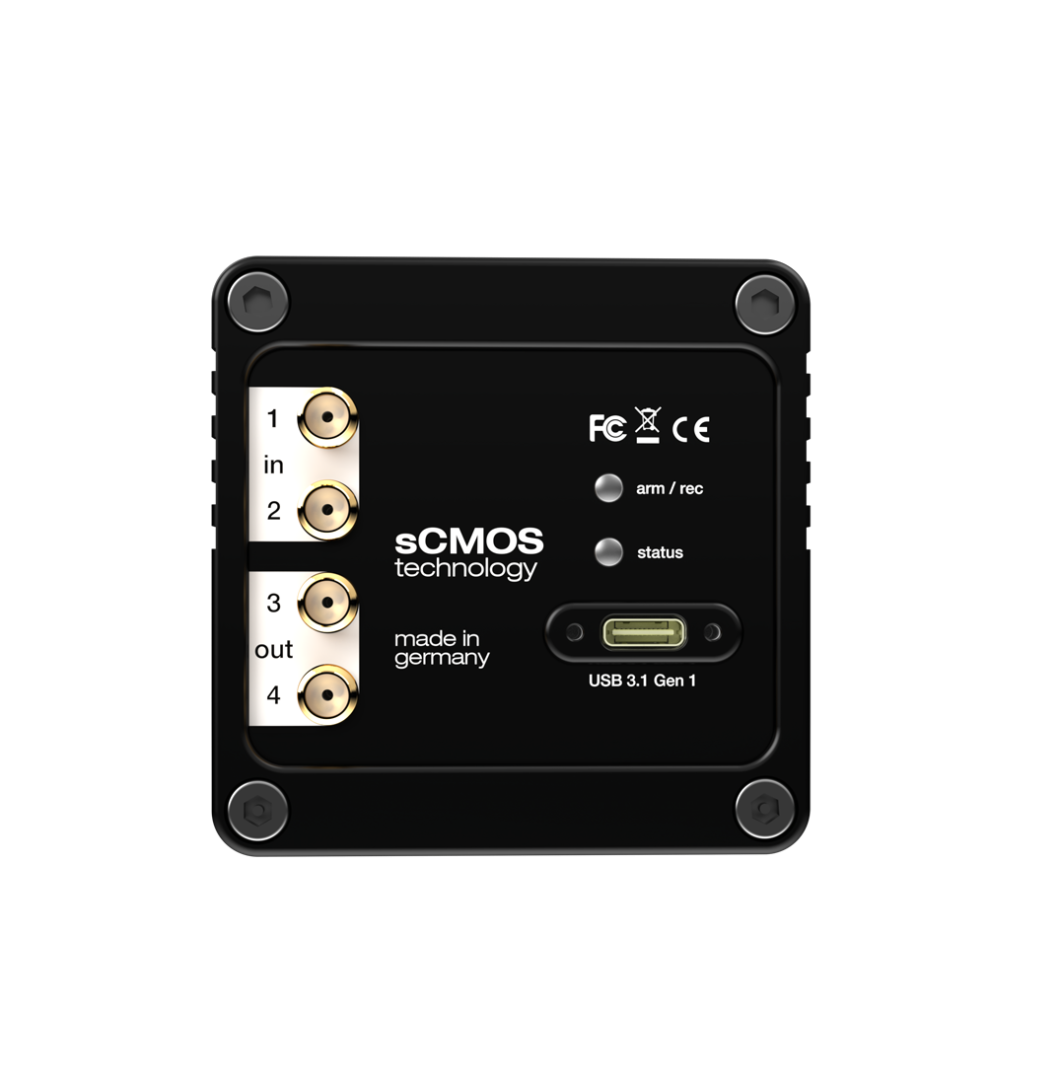

相機的封裝設計和接口都提供極其方便的集成方式。所有的pco.panda相機都具有超緊湊的體積。此相機無需外部電源線纜供電，因其供電和快速數據的傳輸可以

通過一條USB 3.1線纜來完成。

性能參數：

• 雙快門模式，1μs 幀間隔時間

• 超小型設計 65 x 65 x 65 mm3

• 采用16 bit sCMOS 芯片技術

• 圖像分辨率5120 x 5120 pixel

• 像素大小: 2.5 x 2.5 μm2

• 動態范圍66dB

• 量子效率最大65 %

• 曝光時間6us ---350ms

• 最大幀率 6 fps @ 26 MPixel 全分辨率

• 電荷域全局快門

• USB 3.1 Gen1 傳輸方式

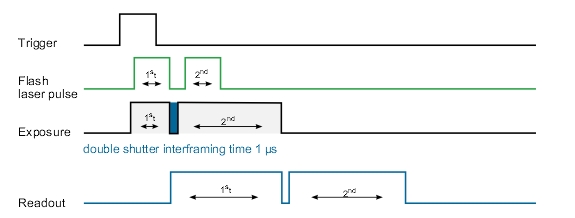

pco.panda 26DS 相機在PIV模式下使用雙快門模式的時序表：

第一次曝光時間的持續時間可以配置。第二次曝光時間的持續時間是固定的，

并由第一次圖像的讀出時間預先定義。因此，在延長的二次曝光時間內，

通常需要防止傳感器受到環境光的照射。

pco.panda 26 DS

ultra compact global shutter sCMOS camera

With the pco.panda 26 DS sCMOS camera you get a high resolution, ultra-compact sCMOS camera for particle image velocimetry (PIV) applications.

The outstanding global shutter capabilities of the pco.panda 26 sCMOS sensor make it a perfect candidate for effective double imaging – a prerequisite to perform all types of Particle Image Velocimetry measurements in flow analysis. In PIV, light scattering particles are added to the flow under test. A laser beam is formed into a light sheet, illuminating the scattering particles twice with a short pulse at a time interval Δt. The lower limit for this time interval is defined by the double shutter interframing time of the camera. The scattered light is recorded onto two consecutive frames of a high resolution digital camera.

The shorter the double shutter interframing time, the higher the flow speeds which can be analyzed. There are many details that make the pco.panda 26 DS sCMOS camera outstanding. Its small 2.5 x 2.5 μm2 pixels are an excellent fit to use the resolution capacity in optical systems. Thanks to the pco.panda 26's DS true charge domain global shutter, you can achieve a remarkably low readout noise and dark current. In addition, the pixel architecture allows to acquire double shutter images, with an interframing time of only 1 μs.

The housing design and interface provide easy integration. All pco.panda cameras have ultra-compact dimensions. The lack of needing an external power supply allows power and fast data transfer through one single USB 3.1 Gen 1 cable.

• double shutter images with 1 μs interframing time

• true charge domain global shutter

• high resolution 5120 x 5120 pixel

• dust-protected housing

• exposure time 6 μs to 350 ms

• pixel size 2.5 μm x 2.5 μm

• dynamic range 66 dB

• ultra-compact design

• frame rate 6 fps @ 26 MPixel (single shutter mode)

• up to 65 % quantum efficiency

• USB 3.1 Gen 1 data interface
