型號：HS-1025 10工位高速濾光片轉盤
濾光片直徑: | 25mm |
可安裝濾光片數量: | 10 |
相鄰2個濾光片切換時間: | 30ms |
濾光片最大厚度: | 9mm |
濾光片裝配： | 可以 |
速度設置: | 8 檔 |
控制接口: | RS-232 |
電子: | 集成電路 |
快門驅動: | 24V 打開; 4V 控制 |
電機: | 無刷伺服電機 |
位置反饋: | 光學編碼器 |
電壓： | 24 VDC |
重量： | 1.45kg |

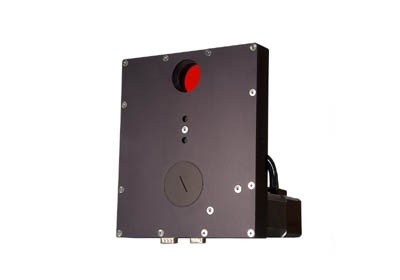

MODEL : HS-1025
10 Position High Speed Filter Wheel
| Filter Diameter: | 25mm |
| Filter Positions: | 10 |
| Adjacent Change: | 30ms |
| Max. Filter Thickness: | 9mm |
| Filter Access: | Yes |
| Speed Settings: | 8 |
| Interface: | RS-232 |
| Electronics: | Integrated |
| Shutter Driver: | 24V to open; 4V to hold |
| Motor: | Brushless Servo |
| Position Feedback: | Optical Encoder |
| Power: | 24 VDC |
| Weight: | 1.45 kg |
